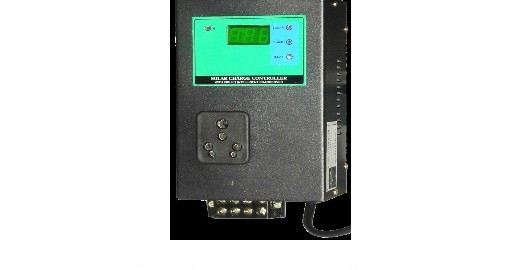

Solar Charge Controller Zero drop Charger With inbuilt inteligent changeover With Sicket & Mains Cord

Specification:

Model-SCC-04	Indication & Readings:
Voltage:12,24,36,48V	1. Solar-It will glow when solar is connected
Current:10,20,40,60A	2. Charger ON-It will glow when charging starts
Relay ON:14.3/28.6V,………..	3. Relay ON-It will glow when relay is ON
Relay OFF:11.5/23V,……………	4. Display-It will show solar voltage by using 3 digit
Full charge cut off :14.5/29V,……	7 segment Display
	Auto/Manual:
	* Auto -Relay will on when it reaches at 14.3/28.6,……..Volt, It will be
	in on position up to 11.5/23,……..Volts
	* Manual -Above mentioned relay function do not work in manual mode

Voltage	Current
12V	10A
12V	20A
12V	40A
12V	60A
24V	10A
24V	20A
24V	40A
24V	60A
36V	10A
36V	20A
36V	40A
